Flutter开发之——安装及开发中出现的问题及解决办法

一 概述

在安装Flutter以及项目开发的过程中可能遇到各种各样的问题,本文加以记录并保持更新

二 安装及配置过程中

2.1 flutter doctor——网络问题

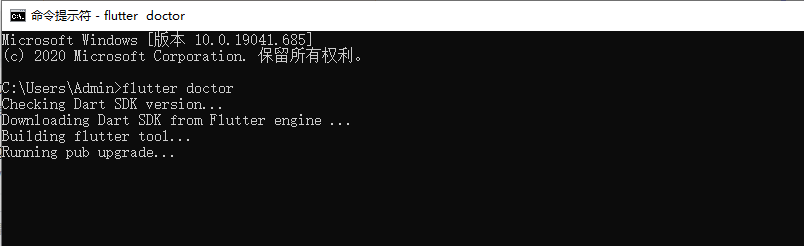

由于国内访问Fluter有时可能会受到限制,在安装Fluter时,可能会出现如下问题:

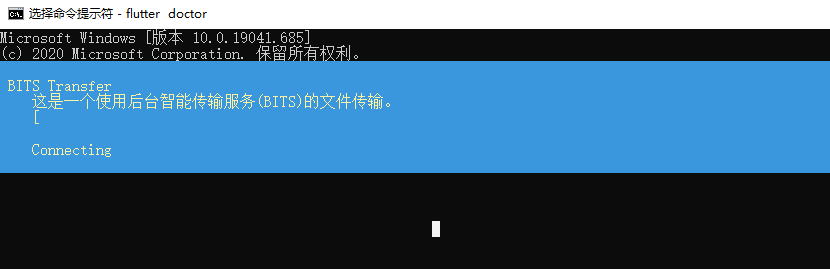

  • BITS Transfer 这是一个后台智能传输服务(BITS)的文件传输
  • CHecking Dart SDK version...
  • Ruilding pub upgrade..

现象

BITS Transfer Dart SDK&Runing pub upgrade

原因

在国内访问Flutter有时可能会受到限制

解决办法(windows下)

配置

Flutter官方为中国开发者搭建了临时镜像,大家可以将如下环境变量加入到用户环境变量中

1
2
PUB_HOSTED_URL=https://pub.flutter-io.cn
FLUTTER_STORAGE_BASE_URL=https://storage.flutter-io.cn

配置后安装效果图

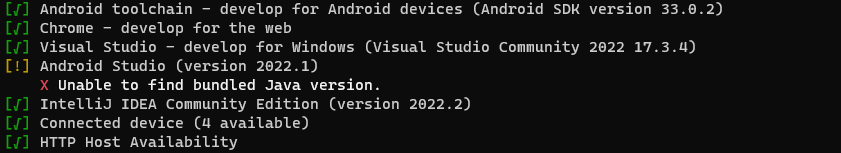

2.2 flutter doctor——jre

现象

原因

Android Studio的安装目录中"没有jre文件夹或jre下文件不完整"

解决办法

JDK文件丢到Android Studio安装目录的"jre"文件夹中即可

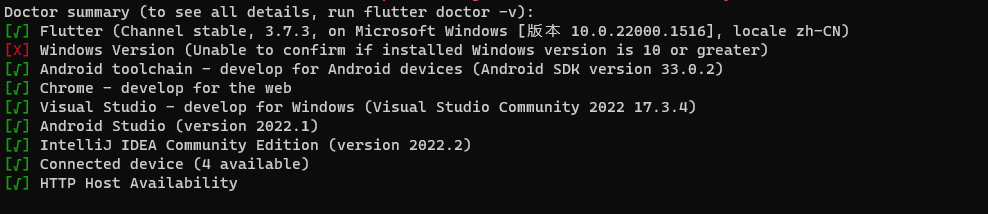

2.3 flutter doctor——Windows Version

现象

解决办法

执行如下指令

1
2
flutter channel master
flutter upgrade

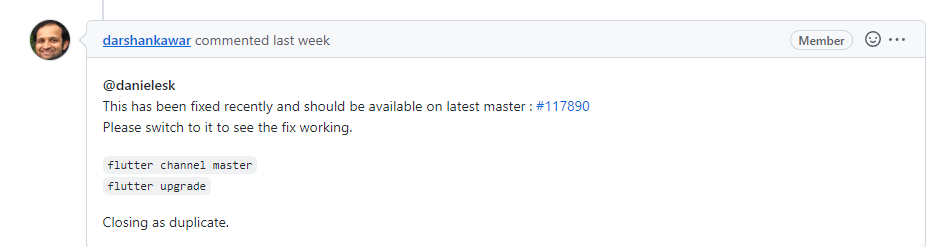

官方给出解释

三 项目开发中

3.1 Pub failed to delete entry ...

现象

1
2
3
4
Pub failed to delete entry because it was in use by another process.
This may be caused by a virus scanner or having a file
in the directory open in another application.
pub finished with exit code 1

解决办法

管理员模式下启动IDE或CMD,然后执行Pub get

3.2 Could not get unknown property 'ndkVersion'

现象

1
Could not get unknown property 'ndkVersion' for object of type com.android.build.gradle.internal.dsl.BaseAppModuleExtension

解决办法

在flutter-3.7.3\packages\flutter_tools\gradle\flutter.gradle配置如下

1
2
3
4
int pluginCompileSdkVersion = pluginProject.android.compileSdkVersion.substring(8) as int
maxPluginCompileSdkVersion = Math.max(pluginCompileSdkVersion,maxPluginCompileSdkVersion)
//String pluginNdkVersion = pluginProject.android.ndkVersion ?: ndkVersionIfUnspecified
String pluginNdkVersion = ndkVersionIfUnspecified

说明:pluginProject.android.ndkVersion ?: ndkVersionIfUnspecified替换为ndkVersionIfUnspecified

3.3 AndroidManifest.xml could not be found.

现象

1
2
3
4
5
AndroidManifest.xml could not be found.
Please check D:\Code\FlutterCode\FlutterScreens-master\android\AndroidManifest.xml for errors.
No application found for TargetPlatform.android_x64.
Is your project missing an android\AndroidManifest.xml?
Consider running "flutter create ." to create one.

解决办法(打开终端执行如下指令)

1
flutter create .

3.4 "FlutterScreens-master" is not a valid Dart package name

现象

1
2
3
"FlutterScreens-master" is not a valid Dart package name.

See https://dart.dev/tools/pub/pubspec#name for more information.

解决办法

dart package name 必须全部小写命名,由数字、小写字母、下划线组成,对应的正则表达式为 [a-z0-9_]

3.5 pubspec.yaml has no lower-bound SDK constraint

现象

1
2
3
4
5
pubspec.yaml has no lower-bound SDK constraint.
You should edit pubspec.yaml to contain an SDK constraint:

environment:
sdk: '^2.12.0'

解决办法

1-pubspec.yaml中设置sdk版本

1
2
environment:
sdk: '>=2.16.2 <3.0.0'

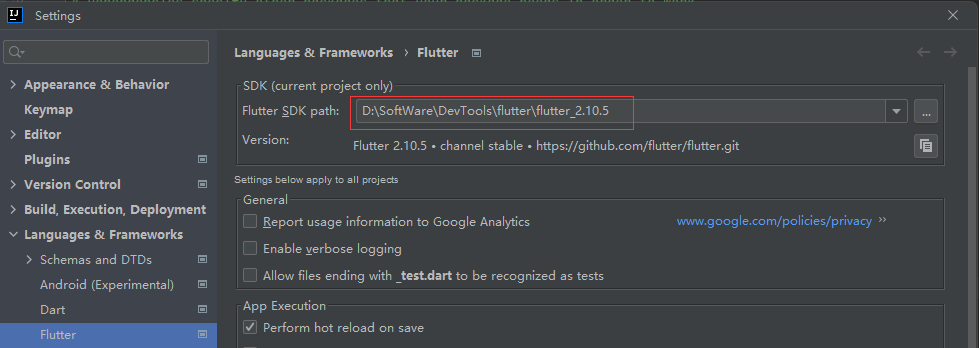

2-File—>Setting—>Languages& Frameworks—>Flutter重新指定Flutter SDK path

3.6 Android Gradle plugin requires Java 11 to run

现象

1
2
3
4
5
6
Android Gradle plugin requires Java 11 to run. You are currently using Java 1.8.
You can try some of the following options:
- changing the IDE settings.
- changing the JAVA_HOME environment variable.
- changing `org.gradle.java.home` in `gradle.properties`.
Gradle settings

解决办法

点击Gradle settings重新选择java版本

3.7 java.lang.NoClassDefFoundError: java/util/logging/Level

现象

1
2
3
4
5
6
7
8
9
10
11
12
13
java.lang.NoClassDefFoundError: java/util/logging/Level
at org.gradle.internal.logging.source.JavaUtilLoggingSystem.<clinit>(JavaUtilLoggingSystem.java:42)
at java.base/jdk.internal.reflect.DirectMethodHandleAccessor.invoke(DirectMethodHandleAccessor.java:104)
at java.base/java.lang.reflect.Method.invoke(Method.java:578)
at org.gradle.wrapper.BootstrapMainStarter.start(BootstrapMainStarter.java:30)
at org.gradle.wrapper.WrapperExecutor.execute(WrapperExecutor.java:129)
at org.gradle.wrapper.GradleWrapperMain.main(GradleWrapperMain.java:61)
Caused by: java.lang.ClassNotFoundException: java.util.logging.Level
at java.base/java.net.URLClassLoader.findClass(URLClassLoader.java:445)
at java.base/java.lang.ClassLoader.loadClass(ClassLoader.java:588)
at java.base/java.lang.ClassLoader.loadClass(ClassLoader.java:521)
... 30 more

解决办法

jdk不完整,替换Android Studio下的jre

3.8 You need Java 11 or higher to build your app with this version of Gradle

现象

1
2
3
4
5
6
7
8
┌─ Flutter Fix ─────────────────────────────────────────────────────────────────┐
│ [!] You need Java 11 or higher to build your app with this version of Gradle. │
│ │
│ To get Java 11, update to the latest version of Android Studio on │
│ https://developer.android.com/studio/install. │
│ │
│ To check the Java version used by Flutter, run `flutter doctor -v`. │
└───────────────────────────────────────────────────────────────────────────────┘

解决办法

Android Studio下的jre为高版本jre(大于等于11)

3.9 RenderCustomMultiChildLayoutBox object was given an infinite size during layout

现象

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
RenderCustomMultiChildLayoutBox object was given an infinite size during layout.

... parentData: not positioned; offset=Offset(0.0, 0.0) (can use size)
... constraints: BoxConstraints(0.0<=w<=392.7, 0.0<=h<=827.6)
... size: MISSING
... direction: vertical
... mainAxisAlignment: start
... mainAxisSize: max
... crossAxisAlignment: center
... verticalDirection: down
The constraints that applied to the RenderCustomMultiChildLayoutBox were: BoxConstraints(0.0<=w<=392.7, 0.0<=h<=Infinity)
The exact size it was given was: Size(392.7, Infinity)

See https://flutter.dev/docs/development/ui/layout/box-constraints for more information.

The relevant error-causing widget was:
Scaffold Scaffold:file:///D:/Code/FlutterCode/flutter_zhihu_getX/lib/provider/refresh/refresh_paging_state_page.dart:80:12
When the exception was thrown, this was the stack:
#0 RenderBox.debugAssertDoesMeetConstraints.<anonymous closure> (package:flutter/src/rendering/box.dart:2298:9)
#1 RenderBox.debugAssertDoesMeetConstraints (package:flutter/src/rendering/box.dart:2394:6)
#2 RenderBox.size=.<anonymous closure> (package:flutter/src/rendering/box.dart:2074:7)
#3 RenderBox.size= (package:flutter/src/rendering/box.dart:2076:6)
#4 RenderCustomMultiChildLayoutBox.performLayout (package:flutter/src/rendering/custom_layout.dart:409:5)
#5 RenderObject.layout (package:flutter/src/rendering/object.dart:2189:7)
#6 RenderBox.layout (package:flutter/src/rendering/box.dart:2430:11)
#7 RenderProxyBoxMixin.performLayout (package:flutter/src/rendering/proxy_box.dart:120:14)

解决办法

根据定位,找到RenderCustomMultiChildLayoutBox报错位置,把试图Widget包在一个Expanded布局里,然后设置flex:1,将Column展开,就解决了这个问题

3.10 'child.hasSize': is not true

现象

1
2
3
RenderBox was not laid out: RenderViewport#2c443 NEEDS-LAYOUT NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 2009 pos 12: 'hasSize'

解决办法

给GridView或ListView设置shrinkWrap属性为true

3.11 SingleChildScrollView嵌套ListView无法滚动

现象

SingleChildScrollView中有一个ListView,导致SingleChildScrollView无法滚动

原因

因为listview和SingleChildScrollView都有scroll

解决办法

需停止listview的滚动,在listview中加入

1
physics: NeverScrollableScrollPhysics()

3.12 don't support null safety

现象

1
2
3
4
5
6
7
Error: Cannot run with sound null safety, because the following dependencies
don't support null safety:

- package:flutter_tindercard

For solutions, see https://dart.dev/go/unsound-null-safety
Target kernel_snapshot failed: Exception

原因

这是因为在flutter2中使用了null safety(空安全)技术,即定义的所有变量在使用中都不能为空null,如果出现null,就会报错.这种安全机制大大减少了null error。

解决办法

但是在一些框架中并没有使用空安全技术,所以在我们引入第三方框架运行后就会出现以上错误,这个时候的解决方法如下

方法一:cmd终端执行如下指令:

1
2
flutter run --no-sound-null-safety
flutter build apk --no-sound-null-safety

方法2:Run/Debug Configurations的Additional run args:中添加如下参数

1
--no-sound-null-safety

3.13 flutter.sdk not set in local.properties

现象

1
flutter.sdk not set in local.properties. Expression: (flutterSdkPath != null). Values: flutterSdkPath = null

原因

flutter项目/android/local.properties下面未设置flutter.sdk

解决办法(给local.properties设置flutter.sdk)

1
2
3
4
sdk.dir=D\:\\SoftWare\\DevTools\\Android\\SDK
flutter.sdk=D:\\SoftWare\\DevTools\\flutter\\flutter-3.7.3
flutter.versionName=1.0.0
flutter.versionCode=1

3.14 We recommend using a newer Android Gradle plugin to...

现象

1
2
3
4
5
6
7
8
9
10
We recommend using a newer Android Gradle plugin to use compileSdk = 33

This Android Gradle plugin (7.2.0) was tested up to compileSdk = 32

This warning can be suppressed by adding
android.suppressUnsupportedCompileSdk=33
to this project's gradle.properties

The build will continue, but you are strongly encouraged to update your project to
use a newer Android Gradle Plugin that has been tested with compileSdk = 33

解释

1
2
3
4
5
6
这句警告的意思是
建议使用一个新的Android Gradle插件去使用compileSdk = 33
这个 Android Gradle 插件 (7.1.2)已经通过了compileSdk = 32的测试
可以通过添加
android.suppressUnsupportedCompileSdk=33这条代码
来抑制此警告

解决办法

将compileSdk设置为32

1
compileSdk = 32

3.15 ..\package_config.json does not exist.

现象

1
2
3
D:\Code\FlutterCode\wechat_flutter-master\.dart_tool\package_config.json does not exist.
Did you run this command from the same directory as your pubspec.yaml file?
Target gen_dart_plugin_registrant failed: Exception:

原因

进入D:..\android.dart_tool目录发现没有package_config.json 这个文件

解决办法

在项目的android目录下执行如下命令

1
2
flutter clean
flutter pub get

四 参考

  • 入门: 在Windows上搭建Flutter开发环境
  • flutter-Issues-windows-version
