IOS开发之——网络-视频播放-NSXMLParser(13)

一 概述

  • NSXMLParser通过initWithDat接收网络请求返回的data初始化
  • 准守NSXMLParserDelegate协议,并实现didStartElement和didEndElement方法
  • didStartElement时开始解析,通过attributeDict初始化Video数据类
  • 执行parser parse方法进行解析,解析完成后,刷新表格

二 解析过程

2.1 解析开始didStartElement和结束didEndElement时

1
2
3
4
5
6
7
8
9
10
11
12
2022-03-07 20:37:30.496853+0800 01-视频播放[10815:102773] didStartElement----videos
2022-03-07 20:37:30.497054+0800 01-视频播放[10815:102773] didStartElement----video
2022-03-07 20:37:30.497322+0800 01-视频播放[10815:102773] didEndElement----video
2022-03-07 20:37:30.497492+0800 01-视频播放[10815:102773] didStartElement----video
2022-03-07 20:37:30.497654+0800 01-视频播放[10815:102773] didEndElement----video
2022-03-07 20:37:30.507498+0800 01-视频播放[10815:102773] didStartElement----video
2022-03-07 20:37:30.507706+0800 01-视频播放[10815:102773] didEndElement----video
2022-03-07 20:37:30.507906+0800 01-视频播放[10815:102773] didStartElement----video
2022-03-07 20:37:30.508130+0800 01-视频播放[10815:102773] didEndElement----video
2022-03-07 20:37:30.508334+0800 01-视频播放[10815:102773] didStartElement----video
2022-03-07 20:37:30.508587+0800 01-视频播放[10815:102773] didEndElement----video
2022-03-07 20:37:30.508834+0800 01-视频播放[10815:102773] didEndElement----videos

2.2 解析开始时,attributeDict的内容

1
2
3
4
5
6
7
2022-03-07 20:39:03.748877+0800 01-视频播放[10940:104868] attributeDict:{
id = 1;
image = "resources/images/minion_01.png";
length = 10;
name = "\U5c0f\U9ec4\U4eba \U7b2c01\U90e8";
url = "resources/videos/minion_01.mp4";
}

说明:可通过video videoWithDict方法,将attributeDict传入,获取Video类

三 示例- NS XMLParser

3.1 代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
#import "ILVideosTableViewController.h"
#import "MBProgressHUD+MJ.h"
#import "Video.h"
#import <SDWebImage/SDWebImage.h>
#import <MediaPlayer/MediaPlayer.h>
#import "GDataXMLNode.h"

#define Url(path) [NSURL URLWithString:[NSString stringWithFormat:@"http://localhost:8080/MJServer/%@",path]];

@interface ILVideosTableViewController ()<NSXMLParserDelegate>

@property(nonatomic,strong) NSMutableArray *videos;

@end

@implementation ILVideosTableViewController

-(NSMutableArray *)videos
{
if (_videos==nil) {
_videos=[NSMutableArray array];
}
return _videos;
}
- (void)viewDidLoad {
[super viewDidLoad];
//加载服务器的最新视频信息
//1-创建URL
NSURL *url=Url(@"video?type=XML");
//2-创建请求
NSURLRequest *request=[NSURLRequest requestWithURL:url];
//3-发送请求
[NSURLConnection sendAsynchronousRequest:request queue:[NSOperationQueue mainQueue] completionHandler:^(NSURLResponse * _Nullable response, NSData * _Nullable data, NSError * _Nullable connectionError) {
if (connectionError||data==nil) {
[MBProgressHUD showError:@"请求失败"];
return;
}
//解析XML数据

//1-创建XML解析器- SAX-逐个元素往下解析
NSXMLParser *parser=[[NSXMLParser alloc]initWithData:data];
//2.设置代理
parser.delegate=self;
//3-开始解析
[parser parse];
//刷新表格
//NSLog(@"---%d",data.length);
[self.tableView reloadData];
}];
}
//解析道文档的开头时会调用那个方法
//elementName-元素名称,attributeDict-属性字典

-(void)parser:(NSXMLParser *)parser didStartElement:(NSString *)elementName namespaceURI:(NSString *)namespaceURI qualifiedName:(NSString *)qName attributes:(NSDictionary<NSString *,NSString *> *)attributeDict{
//NSLog(@"didStartElement----%@",elementName);
NSLog(@"attributeDict:%@",attributeDict);
if([@"videos" isEqualToString:elementName])return;//vides标签,返回
Video *video=[Video videoWithDict:attributeDict];
[self.videos addObject:video];
}

//解析到文档的结尾时会调用
//elementName-元素名称
-(void)parser:(NSXMLParser *)parser didEndElement:(NSString *)elementName namespaceURI:(NSString *)namespaceURI qualifiedName:(NSString *)qName
{
//NSLog(@"didEndElement----%@",elementName);
}
#pragma mark - Table view data source
- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section {
return self.videos.count;
}
- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath {

static NSString *ID=@"ID";
UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:ID];
if(!cell){
cell=[[UITableViewCell alloc]initWithStyle:UITableViewCellStyleSubtitle reuseIdentifier:ID];
}
Video *video=self.videos[indexPath.row];

cell.textLabel.text=video.name;
cell.detailTextLabel.text=[NSString stringWithFormat:@"时长:%d分钟",video.length];
//NSString *imageUrl=[NSString stringWithFormat:@"http://localhost:8080/MJServer/%@",video.image];

NSURL *url=Url(video.image);

[cell.imageView sd_setImageWithURL:url placeholderImage:[UIImage imageNamed:@"placeholder"]];

return cell;
}
#pragma 代理方法
- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath
{
//取出视频模型
Video *video=self.videos[indexPath.row];
NSLog(@"%@",video.name);
//播放视频(调用系统提供的视频播放器)
NSString *videoUrl=[NSString stringWithFormat:@"http://localhost:8080/MJServer/%@",video.url];
//NSURL *url=[NSURL URLWithString:videoUrl];
NSURL *url=Url(video.url);
MPMoviePlayerViewController *player=[[MPMoviePlayerViewController alloc]initWithContentURL:url];
//显示播放器
[self presentViewController:player animated:YES completion:nil];
}
@end

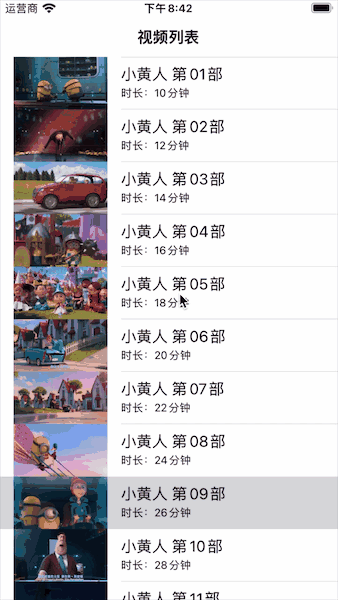

3.2 效果图
