Flutter开发之——IOS通信EventChannel

发表于 2021-07-23 分类于开发， F-跨平台， Flutter 阅读时长 ≈ 2 分钟

一概述

Flutter创建EventChannel通道
IOS端创建通信EventChannel通道
在合适位置调用IOS通信EventChannel

二 EventChannel通信示例

2.1 Flutter创建EventChannel通道

import 'package:flutter/foundation.dart';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';

void main() {
  runApp(EventChannelDemo());
}

class EventChannelDemo extends StatefulWidget {
  @override
  _EventChannelDemoState createState() => _EventChannelDemoState();
}

class _EventChannelDemoState extends State<EventChannelDemo> {

  var _eventChannel = EventChannel('com.flutter.guide.EventChannel');
  var _data;
  @override
  void initState() {
    super.initState();
    _eventChannel.receiveBroadcastStream().listen(_onData);
  }

  _onData(event){
    setState(() {
      _data = event;
    });
  }

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(title: Text("EventChannel")),
        body: Center(
          child: Text('$_data'),
        ),
      ),
    );
  }
}

2.2 IOS端创建通信EventChannel通道

import Flutter
import UIKit

public class EventChannelDemo:NSObject, FlutterStreamHandler{

    var channel:FlutterEventChannel?
    var count =  0
    var events:FlutterEventSink?

    public override init() {
        super.init()
    }

    convenience init(messenger: FlutterBinaryMessenger) {
        self.init()
        channel = FlutterEventChannel(name: "com.flutter.guide.EventChannel", binaryMessenger: messenger)
        channel?.setStreamHandler(self)
        startTimer()
    }

    func startTimer() {
        let timer = Timer.scheduledTimer(timeInterval:1, target: self, selector:#selector(self.tickDown),userInfo:nil,repeats: true)
    }
    @objc func tickDown(){
        count += 1
        let args = ["count":count]
        if(events != nil){
            events!(args)
        }
    }

    public func onListen(withArguments arguments: Any?, eventSink events: @escaping FlutterEventSink) -> FlutterError? {
        self.events = events
        return nil;
    }

    public func onCancel(withArguments arguments: Any?) -> FlutterError? {
        self.events = nil
        return nil;
    }
}

2.3 在合适位置调用IOS通信EventChannel

import UIKit
import Flutter

@UIApplicationMain
@objc class AppDelegate: FlutterAppDelegate {
  override func application(
    _ application: UIApplication,
    didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?
  ) -> Bool {

    let controller : FlutterViewController = window?.rootViewController as! FlutterViewController
    EventChannelDemo(messenger: controller.binaryMessenger)
    GeneratedPluginRegistrant.register(with: self)

    return super.application(application, didFinishLaunchingWithOptions: launchOptions)
  }
}

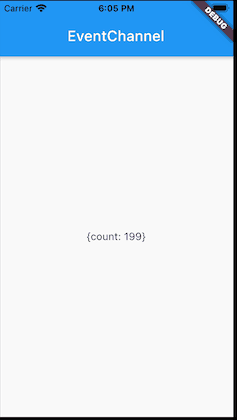

2.4 效果图
