Android开发之——手势识别

前言

使用浏览器或者输入法应用时会有一些手势操作，还可以自定义手势。这些神奇的操作是怎么做的呢？这一篇重点记录手势的识别和创建。这篇的内容使用到了android.gesture包，具体的例子参考的是Sample中的GestureBuilder程序。

手势识别的一般步骤

手势创建

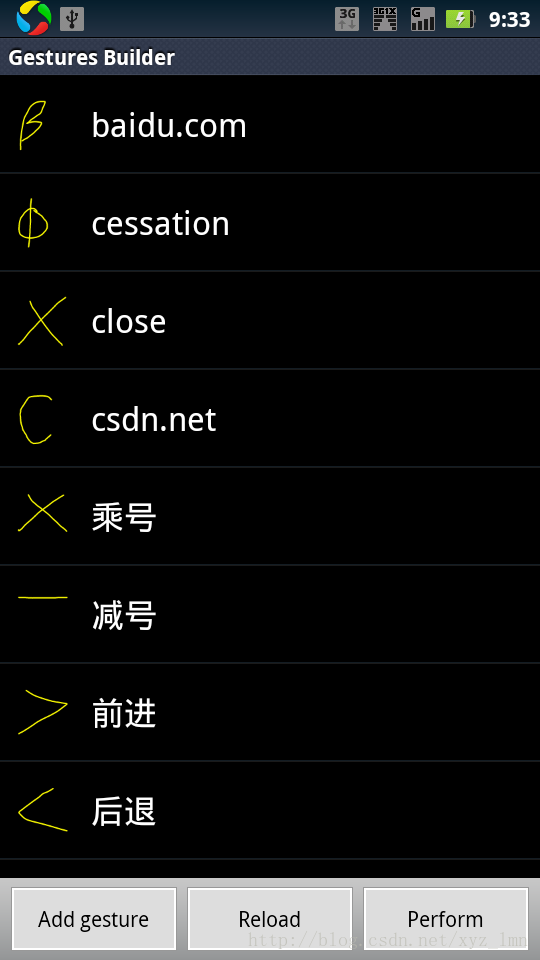

手势创建主要用到了GestureOverlayView和GestureLibrary。GestrueOverlayView的父类为android.widget.FrameLayout，是手势绘图区。GestureLibrary类主要对手势进行保存、删除等操作的，存放手势的仓库。下面给出创建手势的例子，如下图，可以定义如图手势打开csdn.net

创建绘图区

GestureOverlayView overlay = (GestureOverlayView) findViewById(R.id.gestures_overlay);
overlay.setGestureStrokeType(GestureOverlayView.GESTURE_STROKE_TYPE_MULTIPLE);
overlay.setFadeOffset(2000);  //多笔画每两次的间隔时间
overlay.setGestureColor(Color.CYAN);//画笔颜色
overlay.setGestureStrokeWidth(6);//画笔粗细值
overlay.addOnGestureListener(new GesturesProcessor());

监听绘制

private class GesturesProcessor implements estureOverlayView.OnGestureListener
{
   public void onGestureStarted(GestureOverlayView overlay, MotionEvent event)
    {
       mDoneButton.setEnabled(false);
       mGesture = null;
       }
   public void onGesture(GestureOverlayView overlay, MotionEvent event) {}

   public void onGestureEnded(GestureOverlayView overlay, MotionEvent event) {
       mGesture = overlay.getGesture();
       if (mGesture.getLength() < LENGTH_THRESHOLD) {overlay.clear(false);}
       mDoneButton.setEnabled(true);
   }
   public void onGestureCancelled(GestureOverlayView overlay, MotionEvent event) {}
}

保存手势

public void addGesture(View v)
{
   if (mGesture != null)
    {
       final TextView input = (TextView) findViewById(R.id.gesture_name);
       final CharSequence name = input.getText();
       if (name.length() == 0)
        {
           input.setError(getString(R.string.error_missing_name));
           return;
        }

       /**
        * 获取手势库
        *   private final File mStoreFile = new File(Environment.getExternalStorageDirectory(), "gestures");
        *   GestureLibrary sStore = GestureLibraries.fromFile(mStoreFile);
        *
        */
       final GestureLibrary store = GestureBuilderActivity.getStore();
       store.addGesture(name.toString(), mGesture);
       store.save();
       setResult(RESULT_OK);
       final String path = new File(Environment.getExternalStorageDirectory(),
               "gestures").getAbsolutePath();
       Toast.makeText(this, getString(R.string.save_success, path), Toast.LENGTH_LONG).show();
   } else {
       setResult(RESULT_CANCELED);
   }

   finish();
}

手势识别

手势识别也是经过创建绘图区、监听绘制、比对结果三个过程，这里直接给出代码。

public class GesturePerformedActivity extends Activity
{
private final File mStoreFile = new File(Environment.getExternalStorageDirectory(), "gestures");

// 手势库
GestureLibrary mGestureLib;
@Override
protected void onCreate(Bundle savedInstanceState) {
    // TODO Auto-generated method stub
    super.onCreate(savedInstanceState);
    setContentView(R.layout.gesture_perform);
    // 手势画板
    GestureOverlayView gestures = (GestureOverlayView) findViewById(R.id.gestures_overlay);
    gestures.setGestureStrokeType(GestureOverlayView.GESTURE_STROKE_TYPE_MULTIPLE);
    gestures.setFadeOffset(2000); // 多笔画每两次的间隔时间
    gestures.setGestureColor(Color.CYAN);// 画笔颜色
    gestures.setGestureStrokeWidth(6);// 画笔粗细值

    // 手势识别的监听器
    gestures.addOnGesturePerformedListener(new GestureOverlayView.OnGesturePerformedListener() {
        @Override
        public void onGesturePerformed(GestureOverlayView overlay,
                Gesture gesture) {
            // 从手势库中查询匹配的内容，匹配的结果可能包括多个相似的结果，匹配度高的结果放在最前面
            ArrayList<Prediction> predictions = mGestureLib
                    .recognize(gesture);
            if (predictions.size() > 0) {
                Prediction prediction = (Prediction) predictions.get(0);
                // 匹配的手势
                if (prediction.score > 1.0) { // 越匹配score的值越大，最大为10
                    Toast.makeText(GesturePerformedActivity.this,
                            prediction.name, Toast.LENGTH_SHORT).show();
                }
            }
        }
    });

    if (mGestureLib == null) {
        mGestureLib = GestureLibraries.fromFile(mStoreFile);
        mGestureLib.load();
    }
}

}

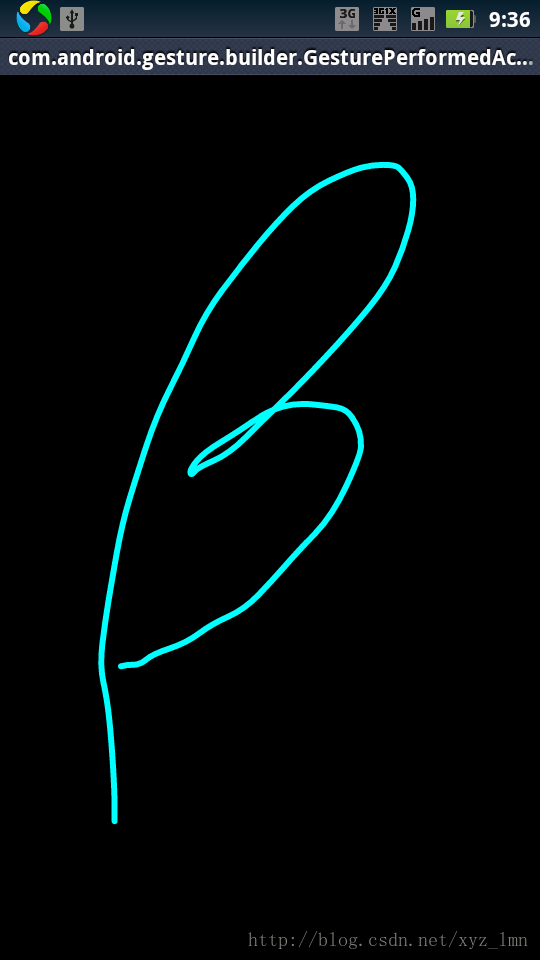

效果
