IOS开发之——登陆界面

一 概述

  • 本文模拟输入用户名和密码进行用户登陆
  • 输入用户名时,可以点击用户名右侧的删除标志删除已经输入的内容
  • 输入密码时,为密文显示
  • 点击登陆,将输入的用户名和密码打印出来

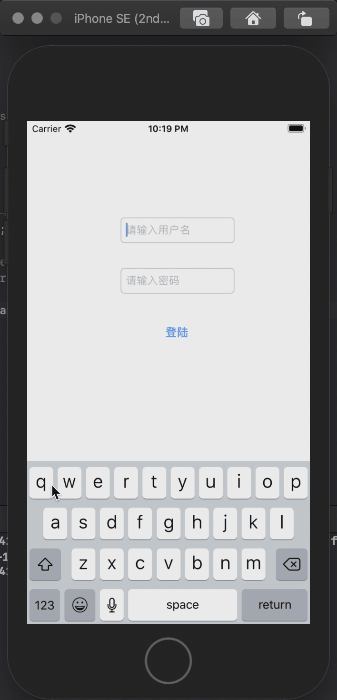

二 效果图

三 界面布局

  • 在界面上拖拽两个TextField(一个是用户名一个是密码)和一个UIButton(登陆)
  • 用户名的placeholder设置为“请输入用户名”,并设置clear Button属性为Appears while editing
  • 密码的placeholder设置为请输入密码,并勾选Secure Text Entry

四 代码

4.1 OC模式下(ViewController.m)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
#import "ViewController.h"

@interface ViewController ()<UITextFieldDelegate>
@property (weak, nonatomic) IBOutlet UITextField *userName;
@property (weak, nonatomic) IBOutlet UITextField *passWord;
@property (weak, nonatomic) IBOutlet UIButton *button;

@end

@implementation ViewController

- (void)viewDidLoad {
[super viewDidLoad];
// Do any additional setup after loading the view.
}
- (IBAction)login:(UIButton *)button
{
NSLog(@"%@ %@",self.userName.text,self.passWord.text);
}

- (BOOL)textFieldShouldReturn:(UITextField *)textField
{
if(textField==self.userName)
{
[self.passWord becomeFirstResponder];
}else if(textField==self.passWord)
{
[self login:self.button];
}
return YES;
}
@end

4.2 Swift模式下(ViewController.swift)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
import UIKit

class ViewController: UIViewController,UITextFieldDelegate{

@IBOutlet weak var userName: UITextField!
@IBOutlet weak var passWord: UITextField!
@IBOutlet weak var loginBtn: UIButton!
override func viewDidLoad() {
super.viewDidLoad()
// Do any additional setup after loading the view.
}

@IBAction func login(_ sender: UIButton)
{
NSLog("用户名是%@,密码是%@", self.userName.text!,self.passWord.text!);

}
func textFieldShouldReturn(_ textField: UITextField) -> Bool {
if(textField==userName)
{
passWord.becomeFirstResponder()
}else if(textField==passWord)
{
login(self.loginBtn)
}
return true
}
}

说明:

  • login(_ sender: UIButton)中,下划线_是用来省略参数标签(parameter label)的
  • 不省略时 login(from sender: UIButton),需要使用参数标签from
