IOS开发之——图片的动画

一 概述

本文介绍与图片相关的动画:

  • 位移动画:上下左右移动
  • 缩放动画:放大与缩小
  • 旋转动画:正旋转与反选择

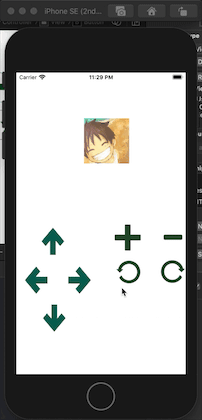

二 效果图

三 代码

3.1 OC模式下(ViewController.m)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
#import "ViewController.h"

@interface ViewController ()
@property (weak, nonatomic) IBOutlet UIButton *iconButton;
@property (nonatomic,assign) CGFloat delta;

@end
typedef enum
{
moveDirTop=11,
moveDirLeft=12,
moveDirBottom=13,
moveDirRight=14

}moveDirect;
#define moveDelta 20;
@implementation ViewController

- (void)viewDidLoad {
[super viewDidLoad];
// Do any additional setup after loading the view.
}

- (IBAction)zoomWithFrame:(UIButton *)button
{
CGRect frame=self.iconButton.frame;
if(button.tag)
{
frame.size.width+=20;
frame.size.height+=20;
NSLog(@"放大");
}else{
frame.size.width-=20;
frame.size.height-=20;
NSLog(@"缩小");
}
self.iconButton.frame=frame;
}
//缩放按钮功能
- (IBAction)zoom:(UIButton *)button
{
CGFloat scale=(button.tag)?1.2:0.8;
self.iconButton.transform=CGAffineTransformScale(self.iconButton.transform, scale, scale);

}
//旋转按钮功能
- (IBAction)rotate:(UIButton *)button
{
CGFloat angle=(button.tag)? -M_PI_4 : M_PI_4;
self.iconButton.transform=CGAffineTransformRotate(self.iconButton.transform, angle);
}


- (IBAction)move:(UIButton *)button
{
CGFloat dx=0,dy=0;
switch (button.tag) {
case moveDirTop:
dy=-20;
break;
case moveDirLeft:
dx=-20;
break;
case moveDirBottom:
dy=20;
break;
case moveDirRight:
dx=20;
break;
default:
break;
}
self.iconButton.transform=CGAffineTransformTranslate(self.iconButton.transform, dx, dy);

}
- (IBAction)demo:(UIButton *)button
{
CGRect frame= self.iconButton.frame;
switch (button.tag) {
case moveDirTop:
frame.origin.y-=moveDelta;
break;
case moveDirLeft:
frame.origin.x-=moveDelta;
break;
case moveDirBottom:
frame.origin.y+=moveDelta;
break;
case moveDirRight:
frame.origin.x+=moveDelta;
break;
default:
break;
}
self.iconButton.frame=frame;
}
@end
