Flutter开发之——Android-Flutter添加到Activity

一 概述

添加Flutter到Activity，又叫从Activity启动Flutter，本文主要讲述一下几种：

• 默认启动FlutterActivity
• 使用缓存的FlutterEngine启动FlutterActivity
• 带有缓存引擎的初始路由启动FlutterActivity

二 路由设置及启动

原生启动Flutter可以分为：直接启动Flutter根界面(home)和启动路由界面

2.1 直接启动

启动方式

startActivity(FlutterActivity.createDefaultIntent(this))

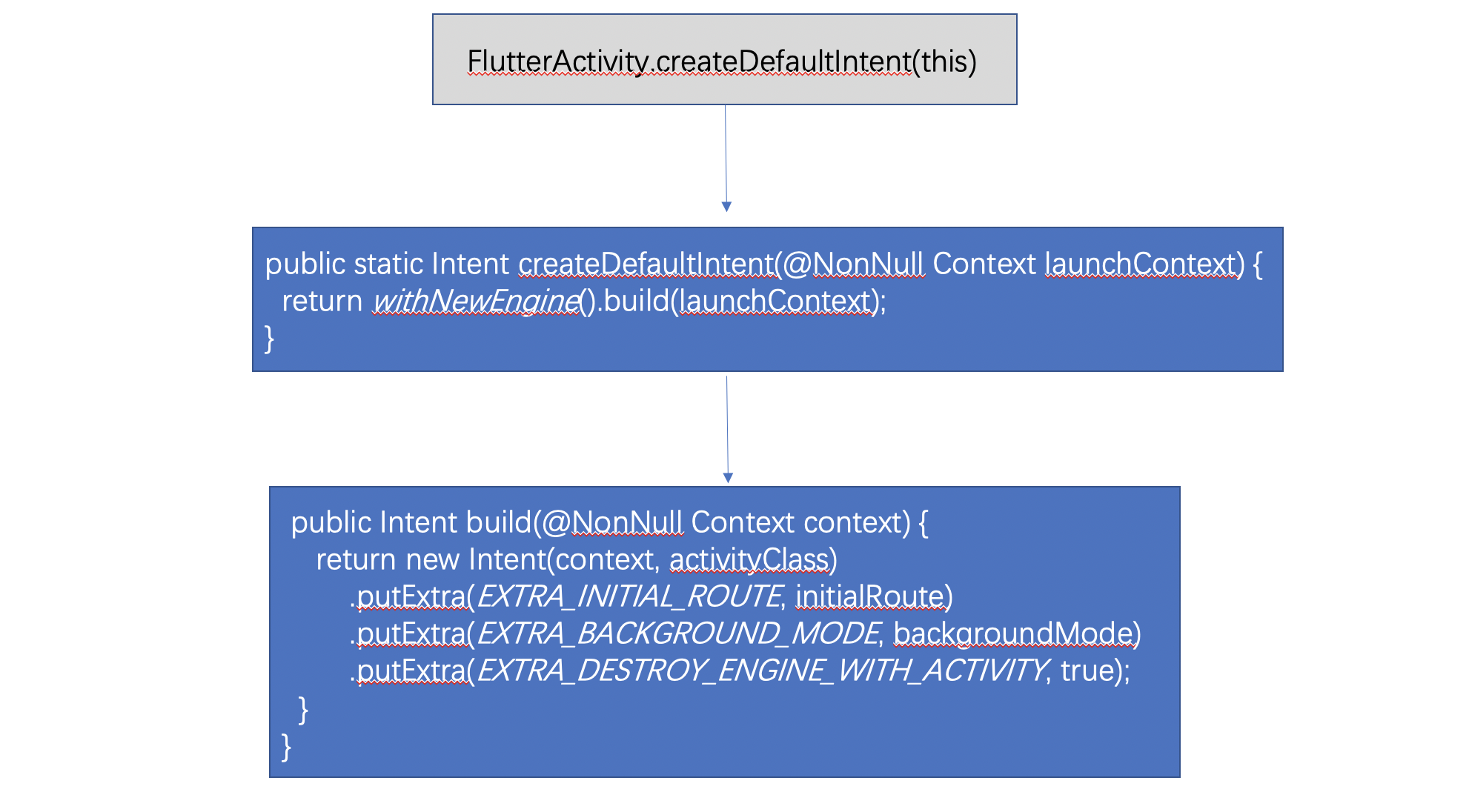

启动说明

• 启动跳转Flutter Intent时，通过调用FlutterActivity.createDefaultIntent(this)
• 此Intent通过withNewEngine().build(launchContext)返回
• build中通过putExtra(EXTRA_INITIAL_ROUTE, initialRoute)，设置要启动的路由

2.2 路由方式启动

启动方式

startActivity(
      FlutterActivity
        .withNewEngine()
        .initialRoute("/my_route")
        .build(currentActivity)
 );

2.3 路由启动示例

flutter/lib/main.dart

默认路由

void main() => runApp(MyApp());
class MyApp extends StatelessWidget {
  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      theme: ThemeData(
        primarySwatch: Colors.blue,
      ),
      home: MyHomePage(title: 'Flutter Demo Home Page'),
    );
  }
}

添加路由页面

void main() => runApp(MyApp());

class MyApp extends StatelessWidget {
  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      theme: ThemeData(
        primarySwatch: Colors.blue,
      ),
      routes: <String,WidgetBuilder>{
        "/":(context)=>MyHomePage(title: 'Flutter Demo Home Page'),
        '/a':(context)=> MyPage(title:'Page A'),
        '/b':(context)=> MyPage(title:'Page B')
      },
      //home: MyHomePage(title: 'Flutter Demo Home Page'),
    );
  }
}

class MyPage  extends StatelessWidget{
  var title;

   MyPage({Key? key, required this.title}) : super(key: key);

  @override
  Widget build(BuildContext context) {
     return Scaffold(
       appBar: AppBar(title: Text(title),),
       body: Center(child: Text(title),)
     );
  }
}

设置启动

startActivity(FlutterActivity
                .withNewEngine()
                .initialRoute("/a")
                .build(this)
)

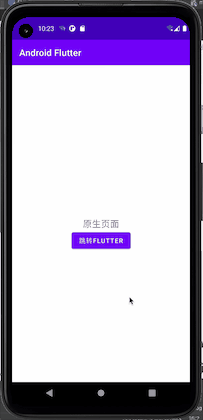

效果图

三 默认启动FlutterActivity

3.1 默认启动方式

myButton.setOnClickListener(new OnClickListener() {
  @Override
  public void onClick(View v) {
    startActivity(
      FlutterActivity.createDefaultIntent(currentActivity)
    );
  }
});

2.3 缺点

• 启动Flutter模块时，会有明显延迟
• 会有一段时间的白屏

四 使用缓存的FlutterEngine启动FlutterActivity

4.1 说明

• 默认情况下，每个FlutterActivity都会创建自己的FlutterEngine
• 每个FlutterEngine都有预热时间，这意味着在FlutterActivity在可视之前，都会有延迟
• 为了减少延迟，在创建FlutterActivity之前，预先创建FlutterEngine，然后使用预先创建的FlutterEngine
• 要预先创建FlutterEngine，可以在应用程序中找到一个合适的位置来实例化FlutterEngine，一般在Application中完成

4.2 创建FlutterEngine(Application中)

public class MyApplication extends Application {
  public FlutterEngine flutterEngine;

  @Override
  public void onCreate() {
    super.onCreate();
    // Instantiate a FlutterEngine.
    flutterEngine = new FlutterEngine(this);

    // Start executing Dart code to pre-warm the FlutterEngine.
    flutterEngine.getDartExecutor().executeDartEntrypoint(
      DartEntrypoint.createDefault()
    );

    // Cache the FlutterEngine to be used by FlutterActivity.
    FlutterEngineCache
      .getInstance()
      .put("my_engine_id", flutterEngine);
  }
}

说明：

• my_engine_id：是个ID标识
• 请确保传递到FlutterActivity或FlutterFragment的ID跟通过FlutterEngine创建的是同一个

4.3 Activity页面中使用FlutterEngine

startActivity(
              FlutterActivity
              .withCachedEngine("my_engine_id")
              .build(this)
        );

说明：

• withCachedEngine("my_engine_id")跟Application中定义的my_engine_id是同一个

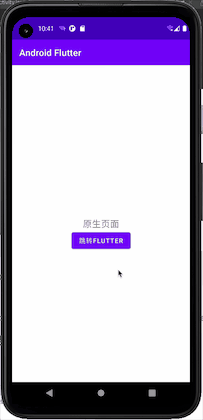

4.4 效果图

五 带有缓存引擎的初始路由启动FlutterActivity

5.1 说明

• 通过FlutterEngine配置启动FlutterActivity或FlutterFragment时，同样也可以设置初始路由
• 不可以在FlutterActivity或FlutterFragment中配置初始路由，因为缓存引擎已经在运行Dart代码中，这时配置初始化路由为时已晚
• 想要其缓存引擎从自定义初始路由开始的开发人员可以将其缓存的FlutterEngine配置为在执行Dart入口点之前使用自定义初始路由

5.2 创建带FlutterEngine的初始化路由

public class MyApplication extends Application {
  @Override
  public void onCreate() {
    super.onCreate();
    // Instantiate a FlutterEngine.
    flutterEngine = new FlutterEngine(this);
    // Configure an initial route.
    flutterEngine.getNavigationChannel().setInitialRoute("/b"); //your/route/here
    // Start executing Dart code to pre-warm the FlutterEngine.
    flutterEngine.getDartExecutor().executeDartEntrypoint(
      DartEntrypoint.createDefault()
    );
    // Cache the FlutterEngine to be used by FlutterActivity or FlutterFragment.
    FlutterEngineCache
      .getInstance()
      .put("my_engine_id", flutterEngine);
  }
}

5.3 Activity页面中使用FlutterEngine

startActivity(
              FlutterActivity
              .withCachedEngine("my_engine_id")
              .build(this)
        );

说明：

• withCachedEngine("my_engine_id")跟Application中定义的my_engine_id是同一个

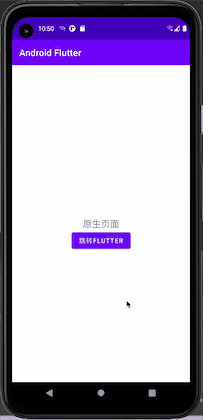

5.4 效果图
