IOS开发之——彩票-设置界面封装(6)

一 概述

  • 设置界面为UITableViewController,自定义为ILSettingTableViewController
  • 界面分为上下2组,自定义ILSettingGroup存放每个分组的header、footer和每列的数组items
  • 为每列Item自定义View为ILSettingCell(UITableViewCell)
  • 每列Item的数据为ILSettingItem(存放icon、title)
  • 为区分ILSettingItem为箭头还是Switch,分别定义ILSettingItem的子类:ILSettingArrowItem和ILSettingSwitchItem

二 代码实现

2.1 UITableViewController

UITableViewController.h

1
2
3
#import <UIKit/UIKit.h>
@interface ILSettingTableViewController : UITableViewController
@end

UITableViewController.m

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
#import "ILSettingTableViewController.h"
#import "ILSettingItem.h"
#import "ILSettingGroup.h"
#import "ILSettingCell.h"
#import "ILSettingArrowItem.h"
#import "ILSettingSwitchItem.h"
#import "ILTestViewController.h"


@interface ILSettingTableViewController ()

@property (nonatomic,strong) NSMutableArray *dataList;

@end

@implementation ILSettingTableViewController

-(NSMutableArray *)dataList
{
if(_dataList==nil)
{
_dataList=[NSMutableArray array];

//第0组
ILSettingArrowItem *pushNotice=[ILSettingArrowItem itemWithIcon:@"MorePush" title:@"推送和提醒"];
pushNotice.destVcClass=[ILTestViewController class];
pushNotice.destVcName=@"ILTestViewController";
ILSettingItem *yaoyiyao=[ILSettingSwitchItem itemWithIcon:@"handShake" title:@"摇一摇机选"];
ILSettingItem *vioce=[ILSettingSwitchItem itemWithIcon:@"sound_Effect" title:@"声音效果"];
//NSArray *group0=@[pushNotice,yaoyiyao];

ILSettingGroup *group0=[[ILSettingGroup alloc]init];
group0.items=@[pushNotice,yaoyiyao,vioce];
group0.header=@"标题头部-1";
group0.footer=@"标题尾部-1";



//第1组
ILSettingItem *newVersion=[ILSettingArrowItem itemWithIcon:@"MoreUpdate" title:@"检测新版本"];
ILSettingItem *help=[ILSettingArrowItem itemWithIcon:@"MoreHelp" title:@"帮助"];
ILSettingItem *share=[ILSettingArrowItem itemWithIcon:@"MoreShare" title:@"分享"];
ILSettingItem *message=[ILSettingArrowItem itemWithIcon:@"MoreMessage" title:@"查看消息"];
ILSettingItem *recommend=[ILSettingArrowItem itemWithIcon:@"MoreNetease" title:@"产品推荐"];
ILSettingItem *about=[ILSettingArrowItem itemWithIcon:@"MoreAbout" title:@"关于"];

//NSArray *group1=@[newVersion,help];

ILSettingGroup *group1=[[ILSettingGroup alloc]init];
group1.items=@[newVersion,help,share,message,recommend,about];
group1.header=@"标题头部-2";
group1.footer=@"标题尾部-2";

[_dataList addObject:group0];
[_dataList addObject:group1];

}
return _dataList;
}

- (instancetype)init
{
return [super initWithStyle:UITableViewStyleGrouped];
}
- (void)viewDidLoad {
[super viewDidLoad];
//self.tableView.rowHeight=200;

// Uncomment the following line to preserve selection between presentations.
// self.clearsSelectionOnViewWillAppear = NO;

// Uncomment the following line to display an Edit button in the navigation bar for this view controller.
// self.navigationItem.rightBarButtonItem = self.editButtonItem;
}

#pragma mark - Table view data source

- (NSInteger)numberOfSectionsInTableView:(UITableView *)tableView {
#warning Incomplete implementation, return the number of sections
return self.dataList.count;
}

- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section {
#warning Incomplete implementation, return the number of rows

//NSArray *arr=self.dataList[section];
ILSettingGroup *group=self.dataList[section];
return group.items.count;
}

- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath {

// static NSString *ID=@"cell";
// UITableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:ID];
// if (cell==nil) {
// cell=[[UITableViewCell alloc]initWithStyle:UITableViewCellStyleDefault reuseIdentifier:ID];
// }
//1-创建cell
ILSettingCell *cell=[[ILSettingCell class] cellWithTableView:tableView];
//2-取出模型


ILSettingGroup *group=self.dataList[indexPath.section];
//ILSettingItem *item=self.dataList[indexPath.section][indexPath.row];
ILSettingItem *item=group.items[indexPath.row];

//cell.imageView.image=[UIImage imageNamed:item.icon];
//cell.textLabel.text=item.title;
//传递模型
cell.item=item;

return cell;
}
-(NSString *)tableView:(UITableView *)tableView titleForHeaderInSection:(NSInteger)section
{
ILSettingGroup *group=self.dataList[section];
return group.header;
}
-(NSString *)tableView:(UITableView *)tableView titleForFooterInSection:(NSInteger)section
{
ILSettingGroup *group=self.dataList[section];
return group.footer;
}
-(void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath
{
//取出模型
ILSettingGroup *group=self.dataList[indexPath.section];
//ILSettingItem *item=self.dataList[indexPath.section][indexPath.row];
ILSettingItem *item=group.items[indexPath.row];

//创建跳转的控制器
if([item isKindOfClass:[ILSettingArrowItem class]])
{
ILSettingArrowItem *arrowItem=(ILSettingArrowItem *)item;
Class vcClass=NSClassFromString(arrowItem.destVcName);

UIViewController *vc=[[vcClass alloc]init];
//UIViewController *vc=[arrowItem.destVcClass alloc];
[self.navigationController pushViewController:vc animated:YES];
}
}

@end

2.2 ILSettingGroup

ILSettingGroup.h

1
2
3
4
5
6
7
8
9
#import <Foundation/Foundation.h>

@interface ILSettingGroup : NSObject

@property (nonatomic,copy) NSString *header;
@property (nonatomic,copy) NSString *footer;
@property (nonatomic,strong) NSArray *items;

@end

2.3 ILSettingCell

ILSettingCell.h

1
2
3
4
5
6
7
8
9
10
#import <UIKit/UIKit.h>

@class ILSettingItem;

@interface ILSettingCell : UITableViewCell
@property (nonatomic,strong) ILSettingItem *item;

+(instancetype)cellWithTableView:(UITableView *)tableView;

@end

ILSettingCell.m

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
#import "ILSettingCell.h"
#import "ILsettingItem.h"
#import "ILSettingArrowItem.h"
#import "ILSettingSwitchItem.h"

@interface ILSettingCell()
@property (nonatomic,strong) UIImageView *imgView;
@property (nonatomic,strong) UISwitch *switchView;

@end

@implementation ILSettingCell

-(UIImageView *)imgView
{
if (_imgView==nil) {
_imgView=[[UIImageView alloc]initWithImage:[UIImage imageNamed:@"CellArrow"]];
}
return _imgView;
}

-(UISwitch *)switchView
{
if (_switchView==nil) {
_switchView=[[UISwitch alloc]init];
}
return _switchView;
}

-(void)setItem:(ILSettingItem *)item
{
_item=item;
//1-设置cell的子控件的数据
[self setUpData];
//2-设置右边的视图
[self setUpAccessoryView];

}
//设置cell的子控件的数据
-(void)setUpData
{
self.imageView.image=[UIImage imageNamed:_item.icon];
self.textLabel.text=_item.title;
}
//设置右边的视图
-(void)setUpAccessoryView
{
NSLog(@"%@",_item);
if ([_item isKindOfClass:[ILSettingArrowItem class]]) { //箭头
//self.accessoryType=UITableViewCellAccessoryDisclosureIndicator;
self.accessoryView=self.imgView;
self.selectionStyle=UITableViewCellSelectionStyleDefault;
}else if([_item isKindOfClass:[ILSettingSwitchItem class]])//switch
{
self.accessoryView=self.switchView;
self.selectionStyle=UITableViewCellSelectionStyleNone;
//self.accessoryView=[[UISwitch alloc]init];
}else
{
self.accessoryView=nil;
self.selectionStyle=UITableViewCellSelectionStyleDefault;
}
}

+(instancetype)cellWithTableView:(UITableView *)tableView
{
static NSString *ID=@"cell";
ILSettingCell *cell = [tableView dequeueReusableCellWithIdentifier:ID];
if (cell==nil) {
cell=[[ILSettingCell alloc]initWithStyle:UITableViewCellStyleDefault reuseIdentifier:ID];
}
return cell;
}
- (void)setSelected:(BOOL)selected animated:(BOOL)animated {
[super setSelected:selected animated:animated];

// Configure the view for the selected state
}

@end

2.4 ILSettingItem

ILSettingItem.h

1
2
3
4
5
6
7
8
9
10
#import <Foundation/Foundation.h>
@interface ILSettingItem : NSObject

@property (nonatomic,copy) NSString *title;
@property (nonatomic,copy) NSString *icon;
//@property (nonatomic,assign) ILSettingItemType type;

+(instancetype)itemWithIcon:(NSString *)icon title:(NSString *)title;

@end

ILSettingItem.m

1
2
3
4
5
6
7
8
9
10
11
12
13
14
#import "ILSettingItem.h"

@implementation ILSettingItem

+(instancetype)itemWithIcon:(NSString *)icon title:(NSString *)title
{

ILSettingItem *item=[[self alloc]init];
item.icon=icon;
item.title=title;

return item;
}
@end

2.5 ILSettingArrowItem

ILSettingArrowItem.h

1
2
3
4
5
6
7
#import "ILSettingItem.h"

@interface ILSettingArrowItem : ILSettingItem
//跳转的控制器的类目
@property (nonatomic,assign) Class destVcClass;
@property(nonatomic,copy) NSString *destVcName;
@end

2.6 ILSettingSwitchItem

ILSettingSwitchItem.h

1
2
3
#import "ILSettingItem.h"
@interface ILSettingSwitchItem : ILSettingItem
@end

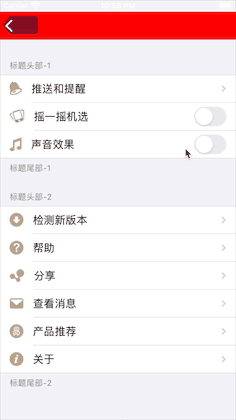

三 效果图
