JavaWeb开发思维导图之——Zookeeper之Curator API常用操作(146)

一 概述

  • 建立连接
  • 添加节点
  • 删除节点
  • 修改节点
  • 查询节点
  • Watch事件监听

二 建立连接

2.1 创建方式

1
2
1-client=CuratorFrameworkFactory.newClient()
2-client=CuratorFrameworkFactory.builder() //级联方式, 可以设置namespace("app1")

2.2 创建时的参数

1
2
3
4
1-connectString: 连接字符串。zk server地址和端口号(如: 192.168.149.135:2181)
2-sessionTimeoutMs: 会话超时时间 单位ms
3-connectionTimeoutMs: 连接超时时间 单位ms
4-retryPolicy: 重试策略

2.2 开启连接

1
client.start()

三 添加节点

3.1 基本创建

1
2
1-示例: client.create().forPath("/app1")
2-返回结果为当前节点

3.2 创建节点带有数据

1
2
1-示例:  client.create().forPath("/app2","aa".getBytes())//放回当前节点
2-不同点: 第二个参数为赋值

3.3 设置节点的类型

1
2
1-示例: client.create().withMode(CreateMode.EPHEMERAL).forPath("/app3")
2-不同点:creatingParentsIfNeeded

3.4 创建多级节点(/app1/p1)

1
2
1-示例: client.create.creatingParentsIfNeeded.forPath("/app4/p1")
2-不同点: creatingParentsIfNeded

四 删除节点

4.1 删除单个节点

1
1-示例: client.delete().forPath("/app1")

4.2 删除带有子节点的节点

1
2
1-示例: client.delete().deletingChildrenIfNeeded().forPath("/app2")
2-关键字:deletingChildrenIfNeeded()

4.3 必须成功的删除

1
2
1-示例: client.delete().guaranteed().forPath("/app3")
2-关键字: guaranteed()

4.4 回调

1
2
3
1-示例: clent.delete().inBackground(new BackgoundCallback()).forPath("/app4")
2-关键字: inBackgound
3-回调信息: processResult方法的event

五 修改节点

5.1 修改数据

1
1-示例: client.setData().forPath("/app1","aa".getBytes())

5.2 根据版本修改

1
2
3
4
1-创建节点: Stat stat = new Stat()
2-查询节点状态: client.getetData().storingStatIn(stat).forPath("/app1")
3-查出版本: int version=stat.getVersion()
4-根据版本修改: client.setData().withVersion(version).forPath("/app1","bb".getBytes())

六 查询节点

6.1 查询数据

1
2
1-客户端: get
2-示例: client.getData().forPath("/app1")

6.2 查询子节点

1
2
1-客户端: ls
2-示例: client.getChildren().forPath("/")

6.3 查询节点状态信息

1
2
3
4
5
6
1-客户端: ls -s
2-示例:client.getData().storingStatIn(stats).forPath("/app1")
3-说明
1-没有client.getStatus()
2-使用new Stat()传入,获取到后设置status
3-stat种包含状态信息

七 Watch事件监听

7.1 监听概述

1
2
3
4
5
1-Watch机制是Zookeeper实现分布式协调服务的重要特性
2-Zookeeper引入Watcher机制实现发布/订阅功能,能够让多个订阅者同时监听某一个对象
3-Zookeeper原生的Watcher监听不是特别方便
4-Curator引入Cache来实现对Zookeeper服务端事件的监听
5-Zookeeper的三种Watcher

7.2 监听操作

1
2
3
1-监听NodeCache
2-监听PathChildrenCache
3-监听TreeCache

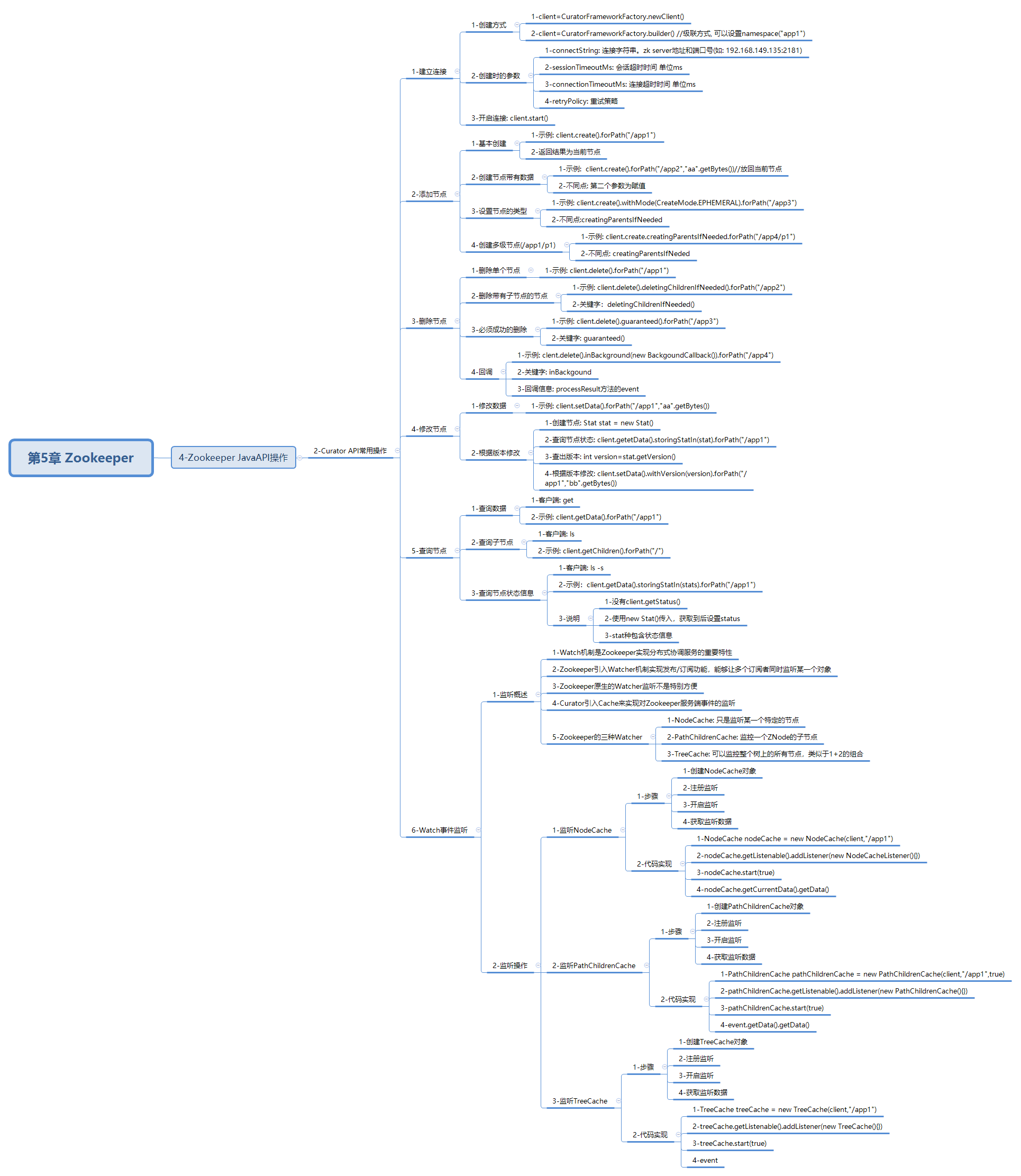

八 思维导图

javaweb-xmind-zookeeer-curator-5
