IOS开发之——图形绘制-仿制UIImageView(7)

发表于 分类于 ， ， 阅读时长 ≈ 1 分钟

一 概述

  • 自定义UIImageView，实现设置图片并显示
  • 点击图片，切换到另一张显示

二 自定义UIImageView，实现设置图片并显示

2.1 一般图片的显示设置

1
2
3
UIImageView *imgV=[[UIImageView alloc]initWithFrame:CGRectMake(0, 0, 200, 200)];
imgV.image=[UIImage imageNamed:@"dog"];
[self.view addSubview:imgV];

2.2 自定义UIImageView

MyImageView.h

1
2
3
@interface MyImageView : UIView
@property (nonatomic,strong) UIImage *image;
@end

MyImageView.m

1
2
3
4
5
6
7
8
9
10
11
12
13
14
#import "MyImageView.h"
@implementation MyImageView
// Only override drawRect: if you perform custom drawing.
// An empty implementation adversely affects performance during animation.
- (void)drawRect:(CGRect)rect {
    // Drawing code
    [_image drawInRect:rect];
}
- (void)setImage:(UIImage *)image
{
    _image=image;
    [self setNeedsDisplay];
}
@end

加载图片

1
2
3
4
5
6
7
- (void)viewDidLoad {
    [super viewDidLoad];
    MyImageView *imgV=[[MyImageView alloc]initWithFrame:CGRectMake(0, 0, 200, 200)];
    imgV.image=[UIImage imageNamed:@"dog"];
    [self.view addSubview:imgV];
    _imgV=imgV;
}

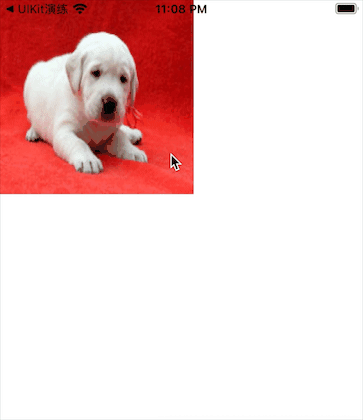

三 点击图片，切换到另一张显示

1
2
3
4
-(void)touchesBegan:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event
{
    _imgV.image=[UIImage imageNamed:@"dog2"];
}
